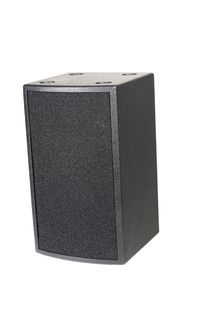

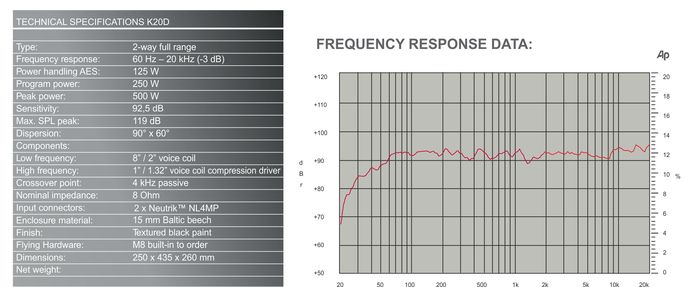

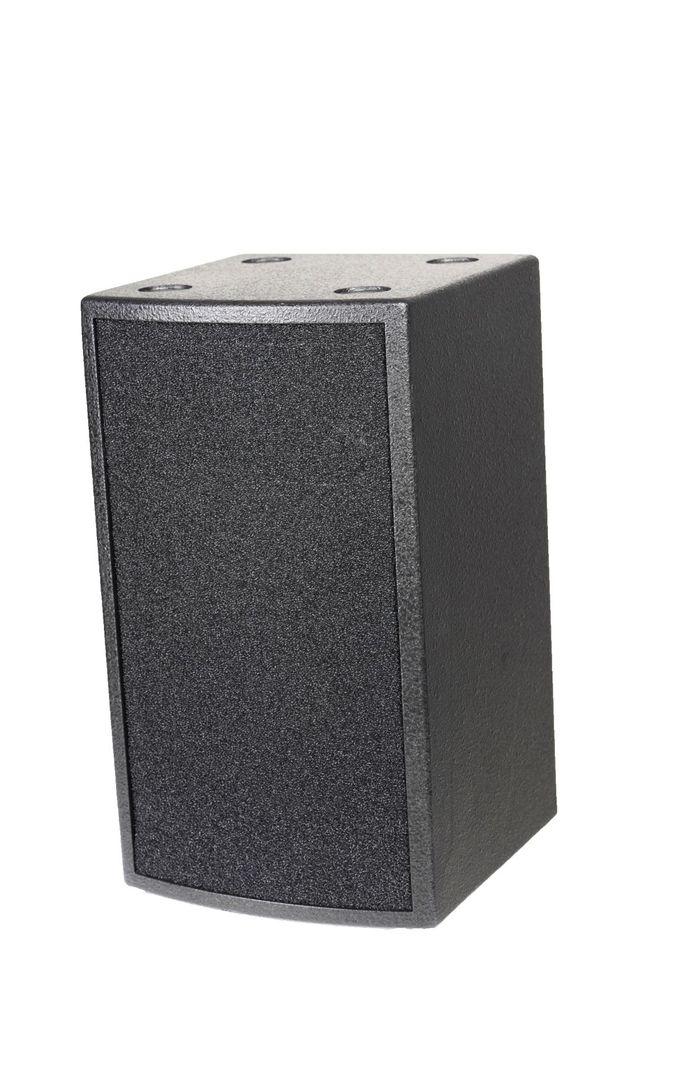

Full Range Systems - K20D
In J3 SOUND type K- 20d broadband speakers, the 8" bass/mid speaker and the 1"
compression driver is brought in harmony with each other by a carefully planned crossover,
which guarantees high sound quality and balanced transfer.
The enclosure is made of beech plywood. Its coating is three-layer matte black coating with plastic basis
in textured design.
The practical design of the enclosure includes a handle made of the same material on the back.
The enclosure has a rubber foot and a standadapter of 36 mm diameter at the bottom.
The broadband speakers are available separately with their unique accessories, the enclosure
can be used as a control speaker angling in 45 degree.
Use: bars, cafés, pubs, shops for providing background music, churches, lecture halls and
conference rooms for speech sound.

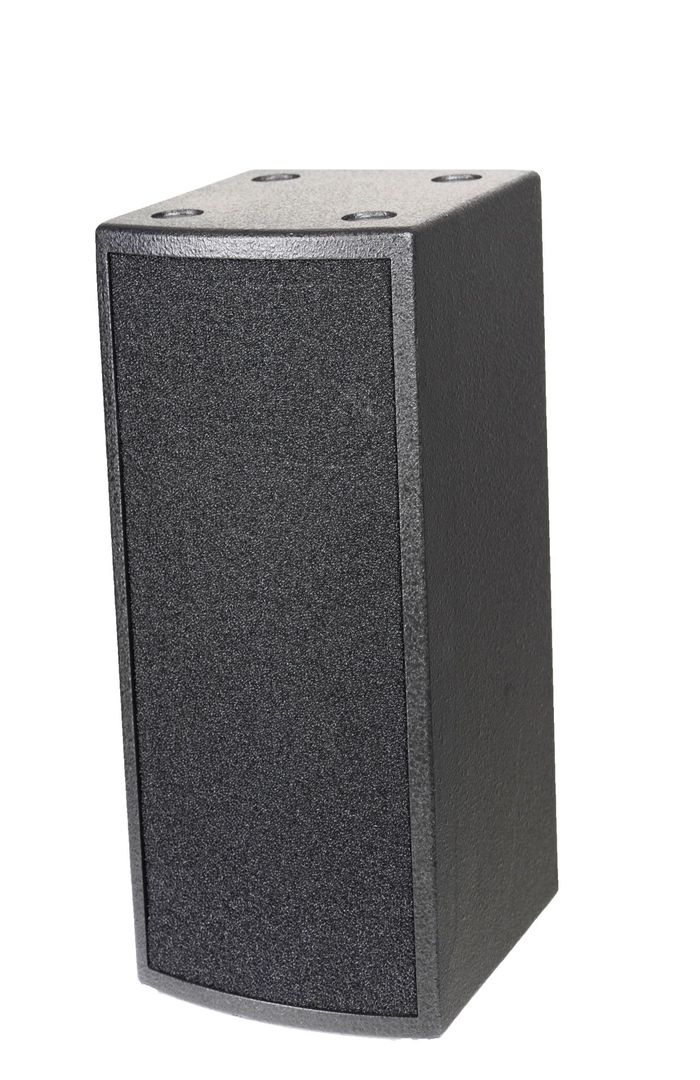

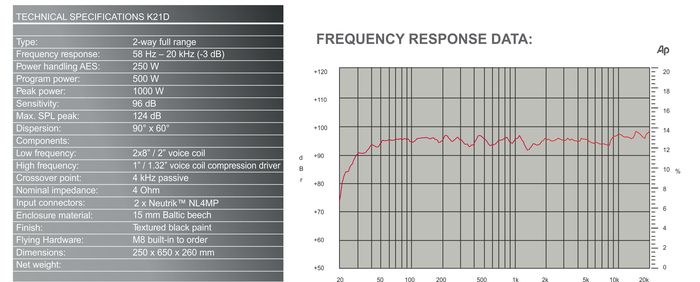

Full Range Systems - K21D
The J3 SOUND K-21 type broadband speaker is equipped with two 8” bass/mid speakers and
a 1" compression driver this way increasing the sound pressure in the bass/mid range. This speaker,
which provides a wide sound range, is characterized by clear and firm audio files. So, this type can
also solve PA tasks.
The enclosure is made of beech playwood. Its coating is three-layer matte black coating with plastic basis in textured design.
The practical design of the enclosure includes a handle made of the same material on the back. The
enclosure has a rubber foot and a standadapter of 36 mm diameter. Two suspension points with a M8 metric thread are devised on every side of the enclosure for suspension.
Use: bars, cafés, pubs for providing background music, churches, lecture halls and conference rooms
for speech sound.

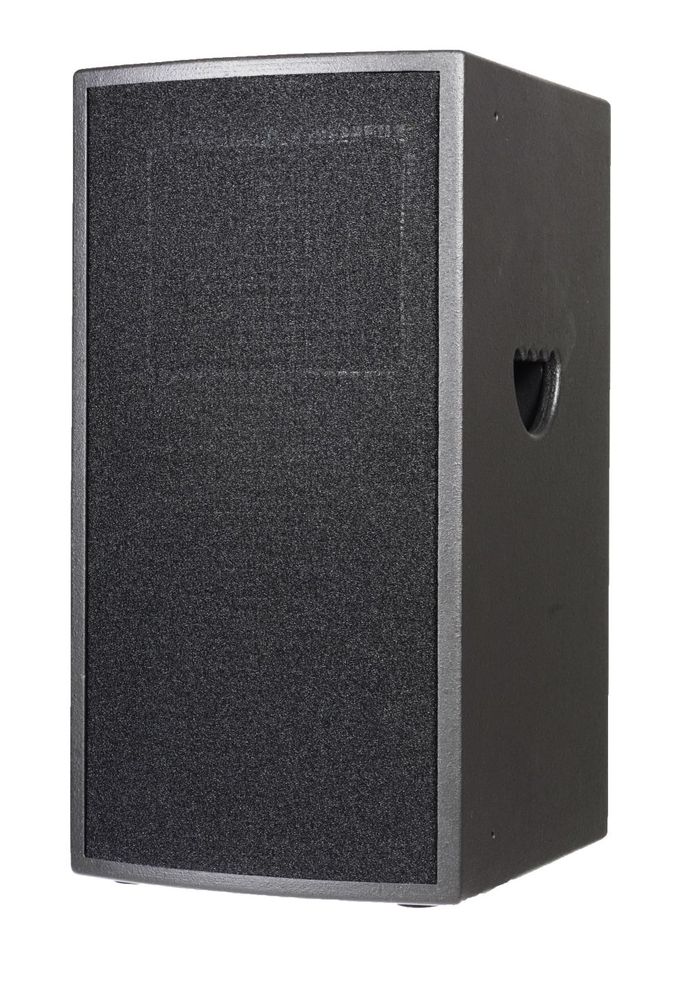

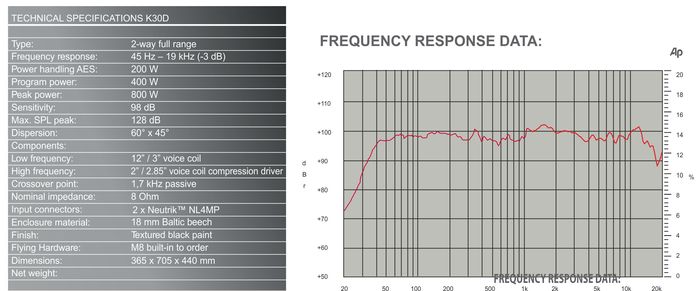

Full Range Systems - K30D
In the J3 SOUND K-30d type, the combination of the 12" high-podwer and high-compression bass/mid
speaker and the 2" compression driver eventuates fairly solid audio files, dynamic transfer and balanced sounding.
The enclosure is made of beech plywood. Its coating is three-layer matte black coating with plastic basis in textured design.
The practical design of the enclosure includes a handle made of the same material on the back. The enclosure has a rubber foot and a standadapter of 36 mm diameter. On the back and on the faces of the enclosure two suspension points with a M8 metric thread installed in the enclosure are devised on each side for suspension.
Use: PA of discos, travelling shows, karaoke bars and school halls and as a speaker of semi-active PA systems of small bands.

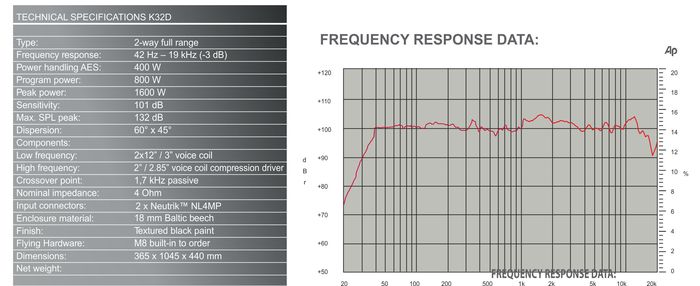

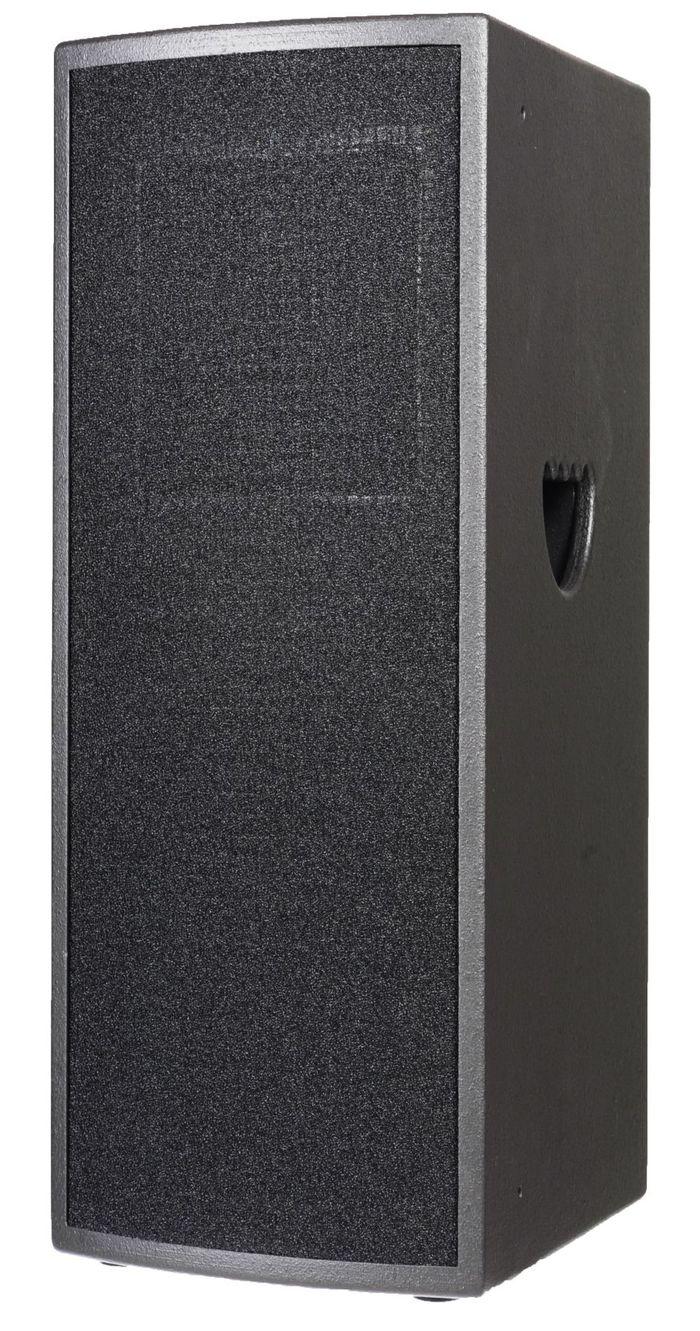

Full Range Systems - K32D
The J3 SOUND K- 32d type broadband speaker is equipped with two 12" bass/mid speakers this way increasing the sensibility and the sound pressure of the speaker. Thus the bass range is featured and the power of the speaker is doubled. The 2" compression driver has been accomodated to the two 12" speakers in point of sensitivity, this way a really powerful speaker, which can also be used on its own, has been eventuated.
The enclosure is made of beech plywood. The coating of the enclosure is a three-layer matte black coating with plastic basis in textured design.
The practical design of the enclosure includes two handles made of the same material on two sides of the enclosure. The enclosure has a rubber foot and a standadapter of 36 mm diameter on the bottom. On the back and on the faces of the enclosure two suspension points with M8 metric thread installed in the enclosure are devised on each side for suspension.
Use: PA of discos, travelling shows, karaoke bars and school halls and as a speaker of semi-active PA systems of small bands.

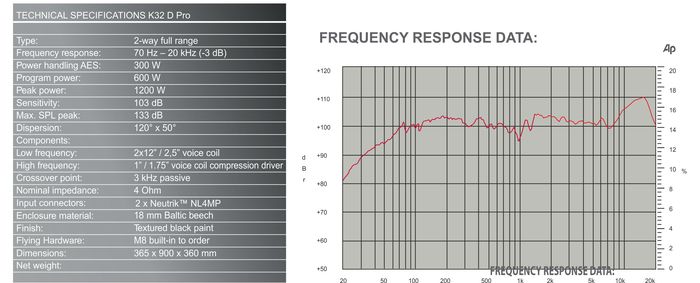

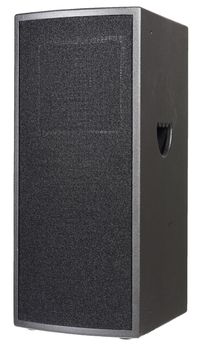

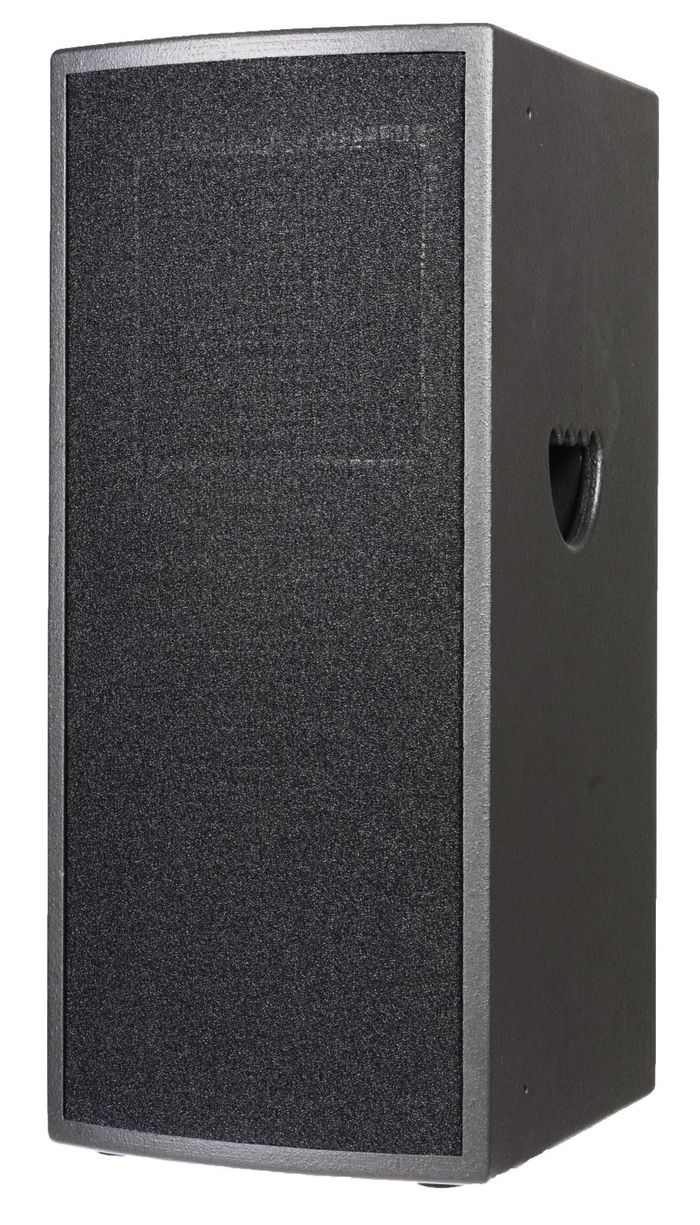

Full Range Systems - K32DPRO
The J3 SOUND K-32d Pro type two-way broadband speaker is equipped with two 12" special bass/mid speakers with high sensibility aside a 1" compression driver as a perfect component. This 1" high speaker
perfectly suits the 12" speaker both in sound quality and sound pressure, thus producing such polyharmonic tone and sound quality, which meets the highest requirements.
The enclosure is made of beech plywood. The coating of the enclosure is a three-layer matte black coating with plastic basis in textured design.
The practical design of the enclosure includes two handles made of the same material on two sides of the enclosure. The enclosure has a rubber foot and a standadapter of 36 mm diameter on the bottom. On the back and on the faces of the enclosure two suspension points with M8 metric thread installed in the enclosure are devised on each side for suspension.
Use: for information operating systems of sports-grounds, stadiums, stations as for transfer of the mid-high range of big PA systems.

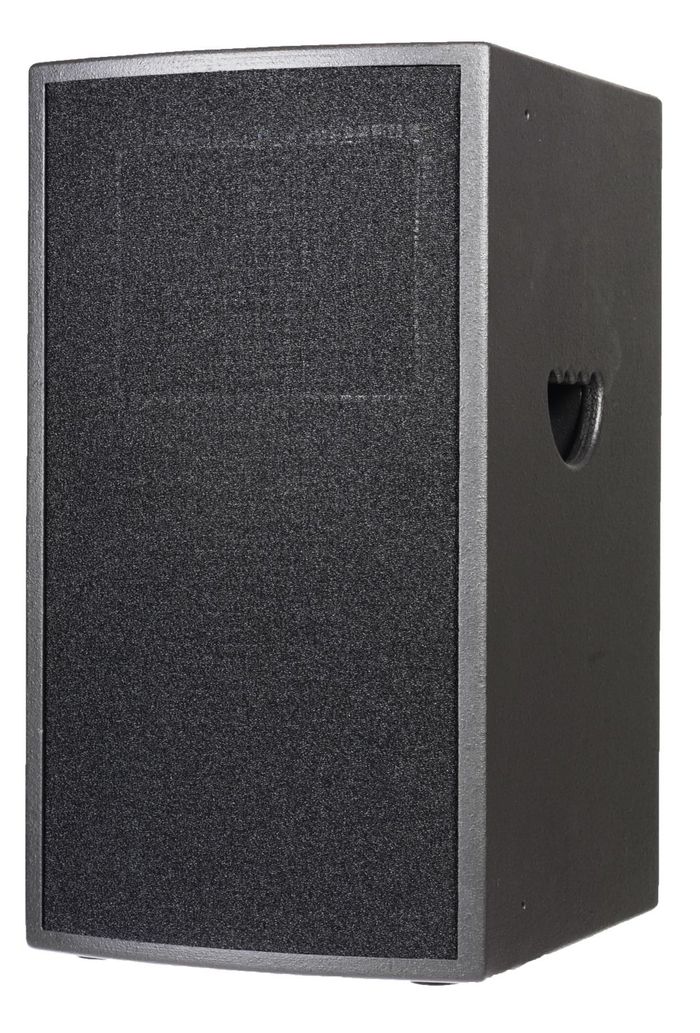

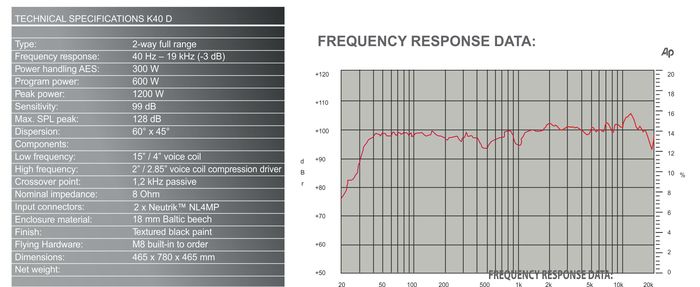

Full Range Systems - K40D
The 15" bass/mid speaker installed in the J3 SOUND K-40d type speaker has high sensibility even on low frequency in the low range. With the 2" compression driver added to it, the audio files of the speaker give great value of delight and is unobtrusive even despite the astonishing sound pressure.
The enclosure is made of beech plywood. The coating of the enclosure is a three-layer matte black coating with plastic basis in textured design.
The practical design of the enclosure includes a handle made of the same material on the back of the enclosure.
There is a rubber foot and a standadapter of 36 mm diameter. On the back and on the faces of the enclosure two suspension points with M8 metric thread installed in the enclosure are devised on each side for suspension.
Use: discos, travelling shows, amusement grounds, karaoke bars, halls for dance teaching, and for listening to music of high standard and high-power at home.

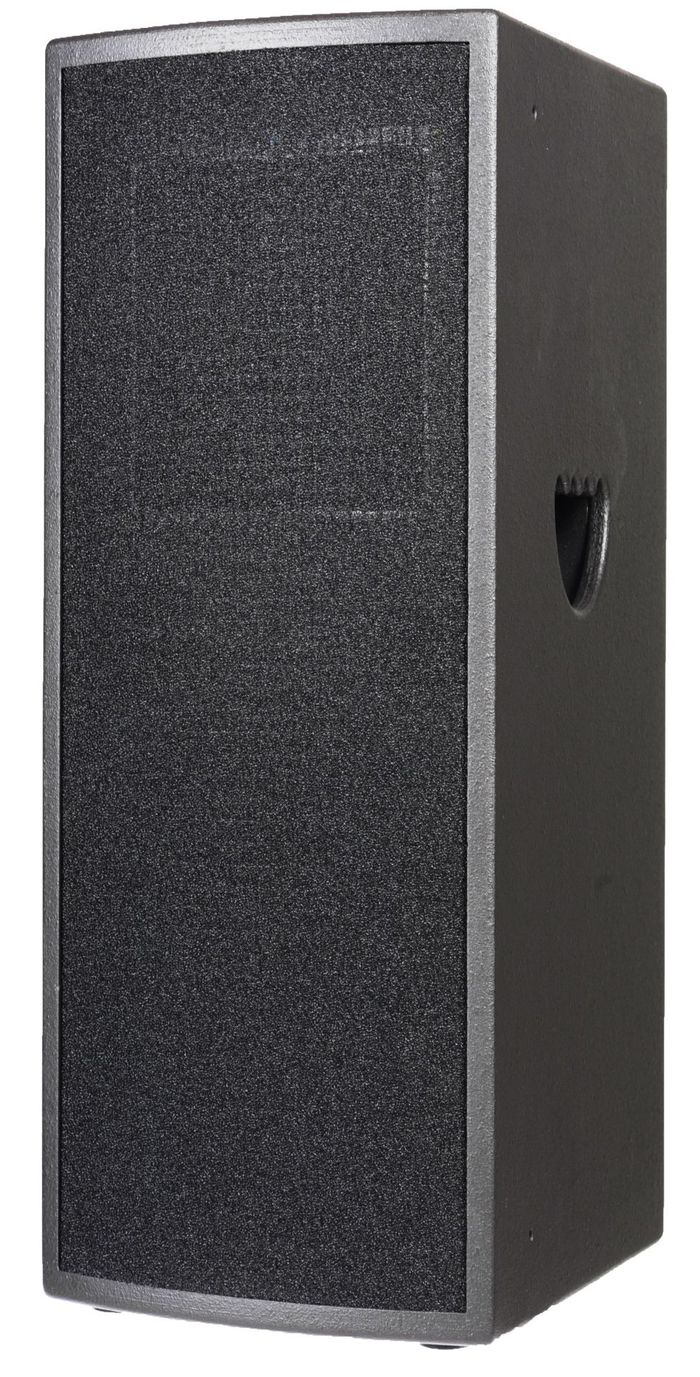

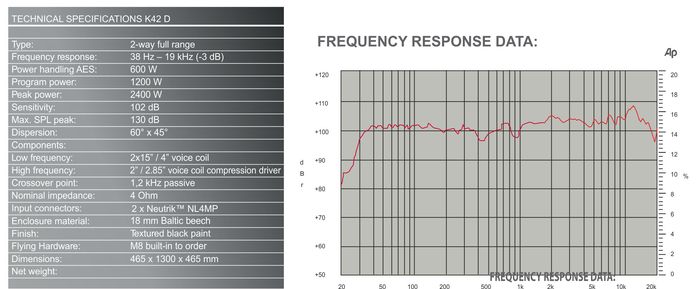

Full Range Systems - K42D
The J3 SOUND K-42d type broadband speaker is equipped with two 15" bass/mid speakers in order to create highly significant bass range. With the 2"compression driver added to it, an effect, extending to a broad sound range, having astonishing dynamics and reproducing concert experience is achieved. Thus sound tasks demanding high efficiency can be solved with this type even using it on its own.
The enclosure is made of beech plywood. The coating of the enclosure is a three-layer matte black coating with plastic basis in textured design.
The practical design of the enclosure includes two handles made of the same marerial on two sides of the enclosure and the rubber feet on the bottom. On the back and on the faces of the enclosure two suspension pointe with M8 metric thread installed in the enclosure are devised on each side for suspension.
Use: discos, travelling shows, amusement grounds, caraoke bars, halls for dance teaching and for listening to music of high standard and high-power at home.
